DP display
DP, supports DP display and gives you an extraordinary visual experience.
Wide Application
This product provides you with great experiences
and helps you effeiciently achieve your goals.
Medical
Transportation
Industry

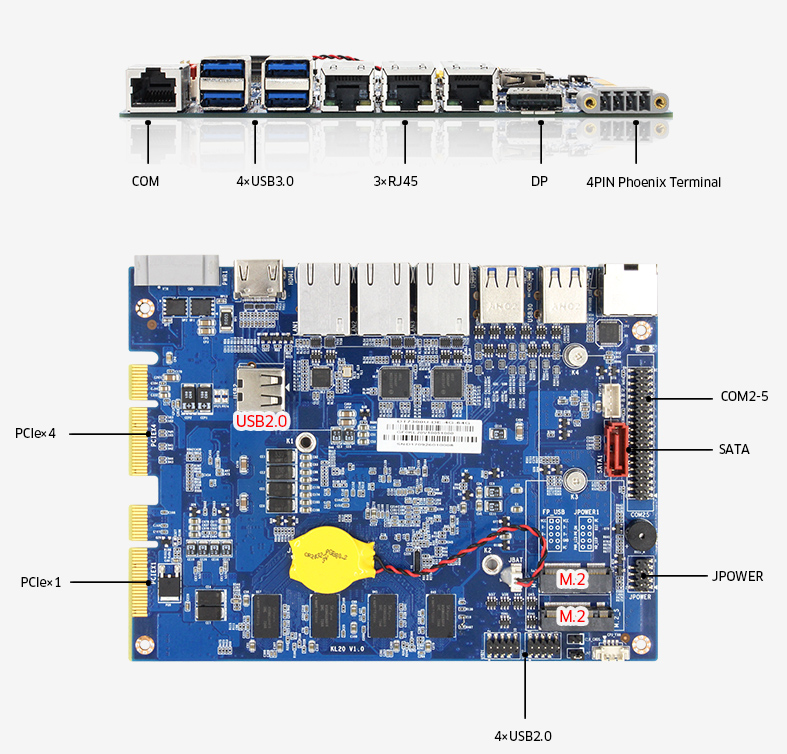

5COM 8USB 3LAN
This mini embedded motherboard also has rich I/O interfaces, which meets the requirement of the market.
产品概述

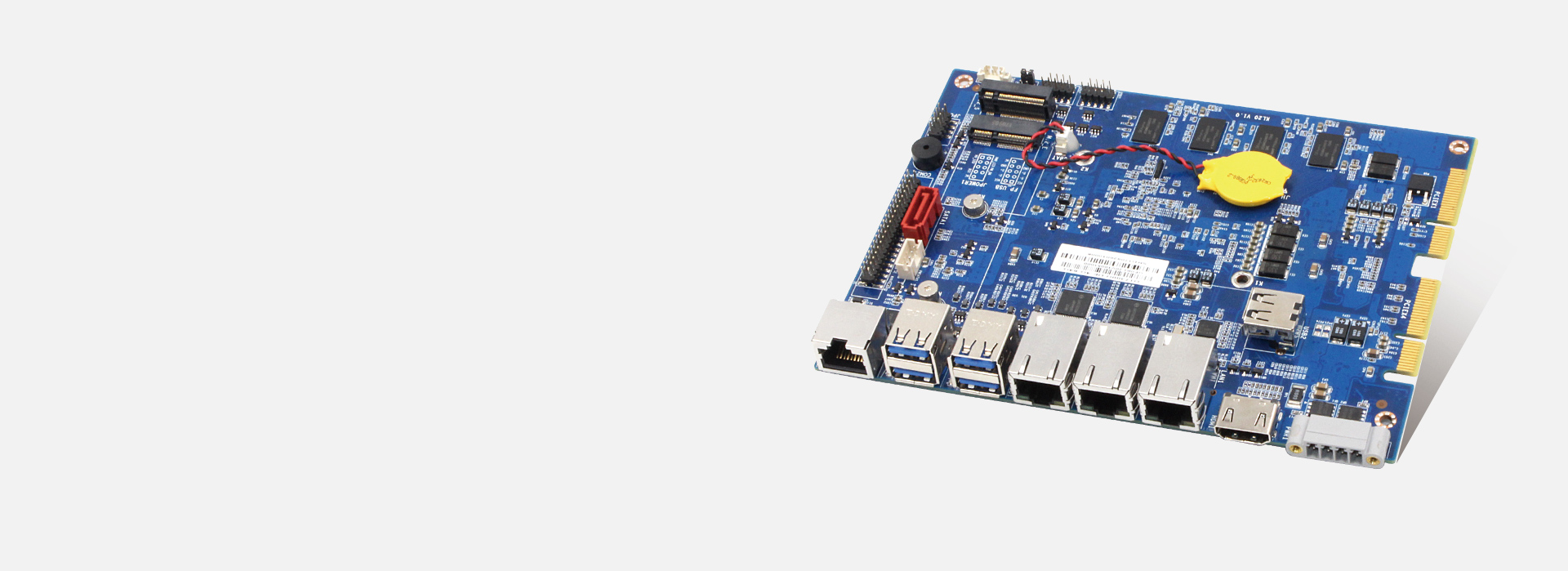

The MITX-KL20 is an embedded motherboard, supporting Intel® latest Gen. Kabylake-U Core™ i3/i5/i7 Celeron processor (BGA 1356), Celeron® 3865U, Core ™ i3-6100U, i3-7100U, Core™ i5-7200U, Core™ i5-6200U.

This board features display via 1* Display Port1.2. It carries 2* DDR4 DIMM 2133/1866MHz slots up to 32GB to add higher bandwidth and lower latencies for processes. It has 3×10M/100M/1000M BASE-T gigabit LAN (Intel i211/Intel i219), 4×USB3.0, 5×USB 2.0, 5×RS232.

产品特色
    • Intel Skylake-U/Kabylake-U and Celeron BGA processor

    • Dual channel DDR4 up to 32GB memory

    • DP display

    • Support 10/100/1000Mbit ethernet card >>SATA3.0, M.2, PCIe 4x, PCIe 1x

    • 16V~36V 4PIN input
