Multiple display
HDMI+DP+eDP, supports multiple display and gives you an extraordinary visual experience.
Wide Application
This product provides you with great experiences
and helps you effeiciently achieve your goals.
Medical
Transportation
Industry
6COM 8USB 2LAN
This mini embedded motherboard also has rich I/O interfaces, which meets the requirement of the market.
产品概述

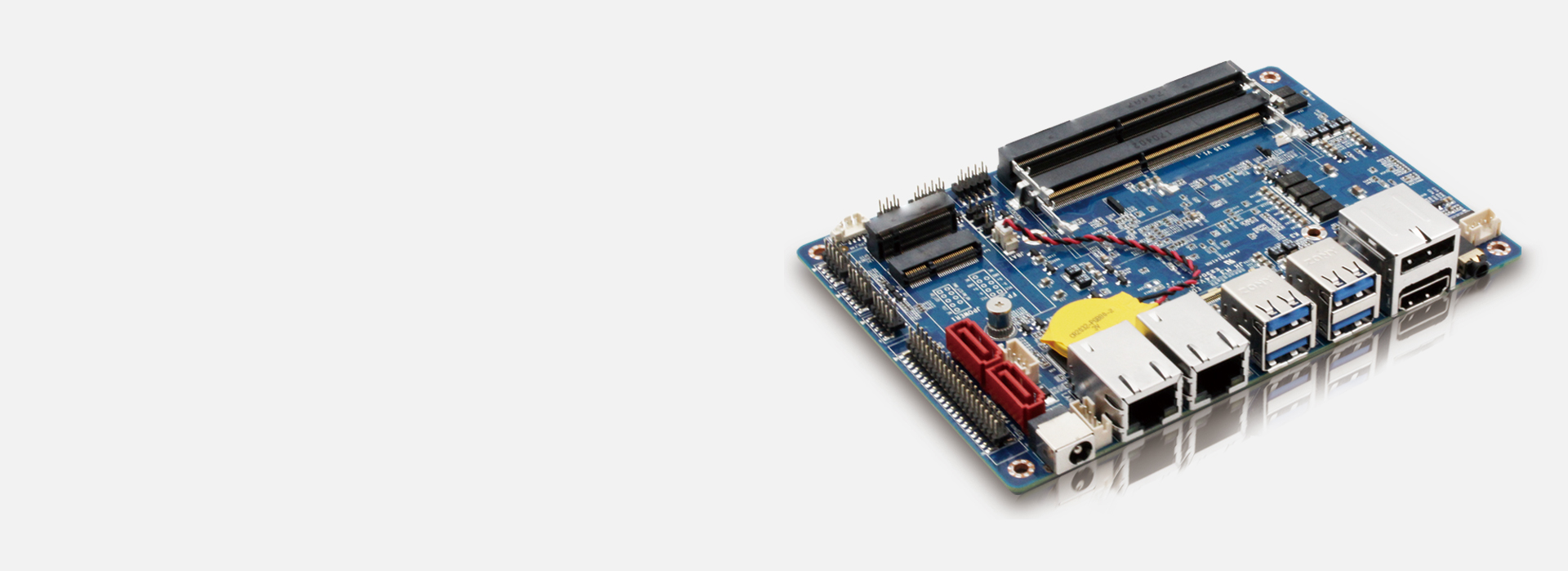

The SBC-KL35 is an embedded motherboard, supporting Intel® latest 7th Gen. Skylake-U/Kabylake-U Core™ i3/i5/i7 and Celeron processor (BGA 1356), Celeron® 3865U, Core™ i3-7100U, Core™ i5-7200U, Core™ i3-6100U, Core™ i5-6200U.

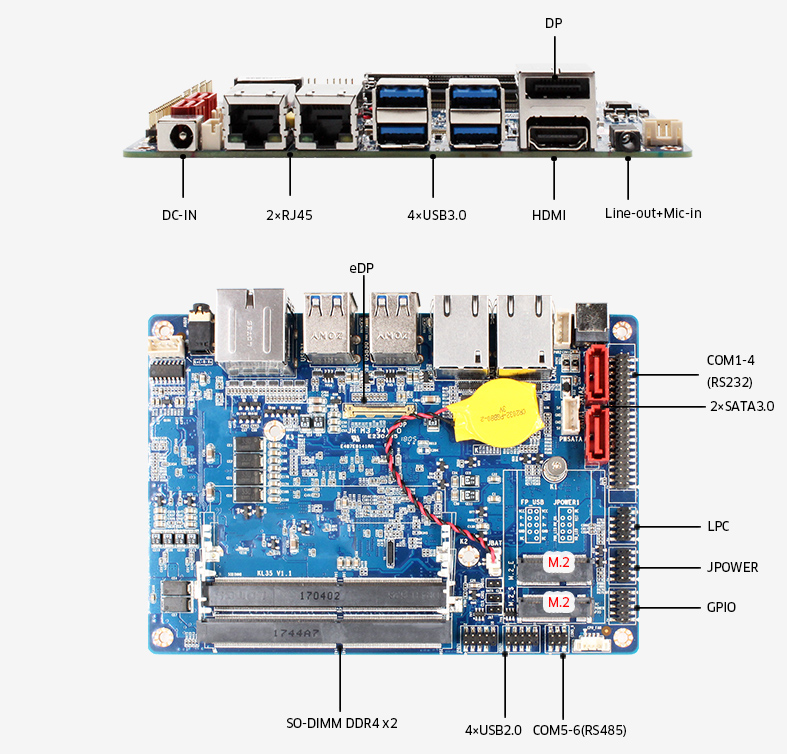

This board features multiple display via 1×Display Port1.2 and 1×HDMI1.4  and 1×eDP. It carries 2×DDR4 SO DIMM 2133MHz slots up to 32GB to add higher bandwidth and lower latencies for processes. It has 2×10M/100M/1000M BASE-T gigabit LAN (Intel i211/i219), 4×USB3.0, 4×USB2.0, 4×RS232, 2×RS485, 1×LPC(optional), 8×GPIO.

产品特色
    • Intel Skylake-U/Kabylake-U, Celeron BGA processor

    • Dual channel DDR4 system memory up to 32GB

    • Multiple display: HDMI, DP, eDP

    • 10/100/1000Mbit ethernet card

    • SATA3.0, M.2 (2242 SSD for SATA definition)

    • 9~24V DC input
