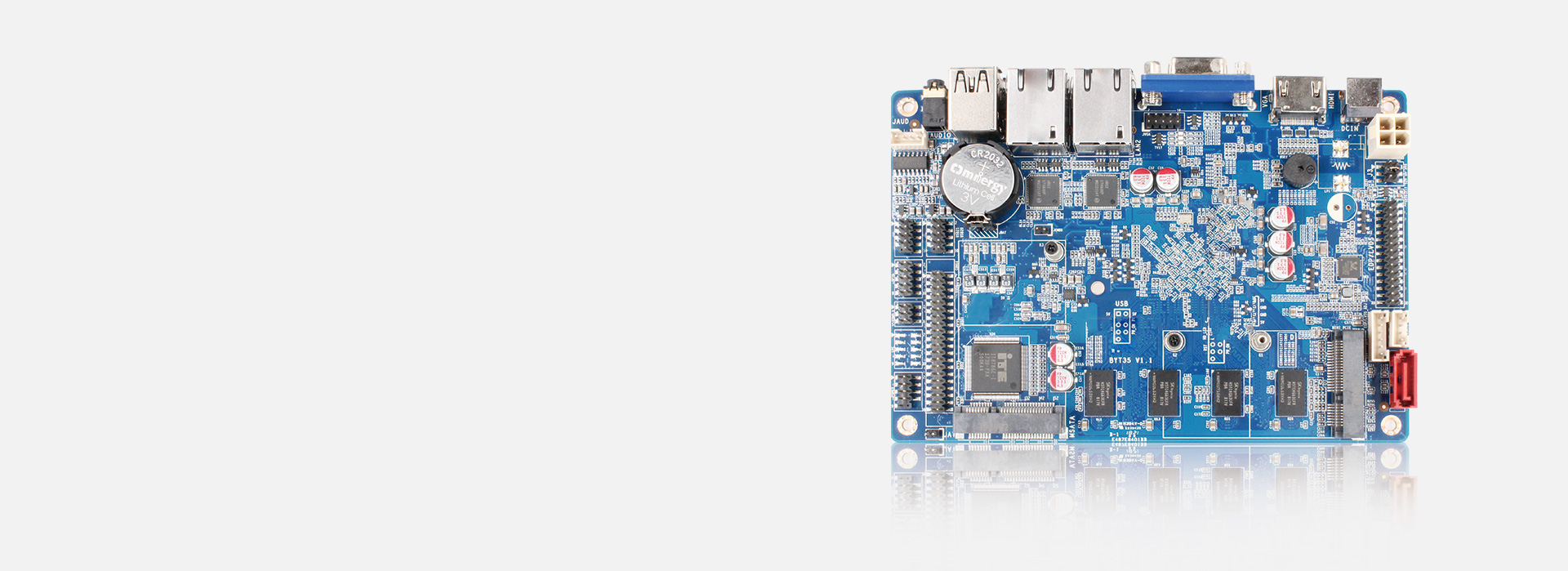

The SBC-BYT35 is a low power consumption 3.5" single board computer, supporting Intel® Bay Trail Platform processors, Celeron J1800, Celeron J1900, N2940 and E3845. It offers onboard 2GB or 4GB system memory for higher bandwidth and lower latencies for processes. Powered by Intel® i211 controllers, this board is equipped with Dual Intel Gigabit Ethernet.

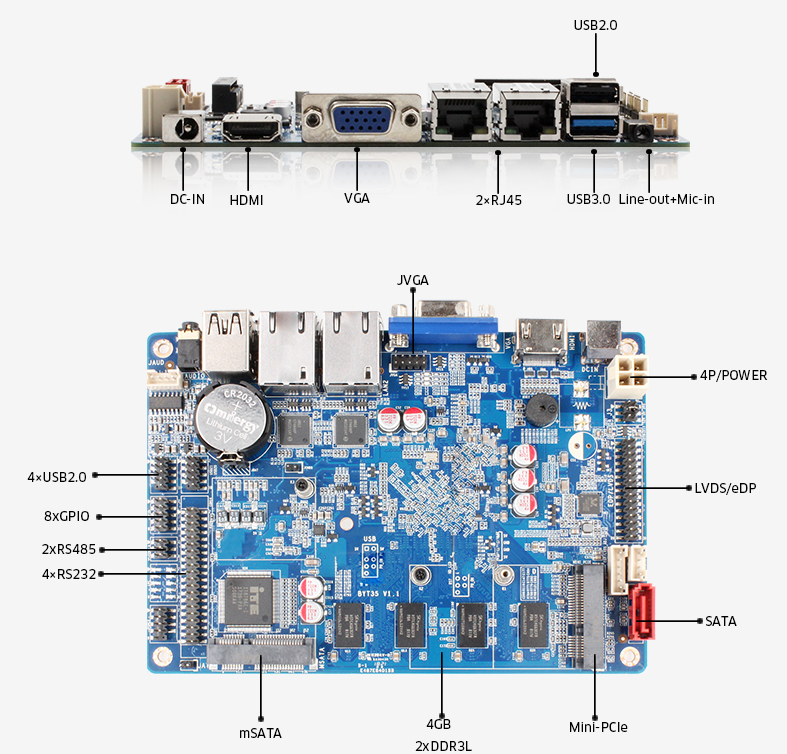

Measuring only 146mm x 102mm(LxW), this embedded board features rich I/O, including 1×HDMI, 1×VGA, 1×eDP/LVDS (optional), 1×Audio, 2×10M/100M/1000M BASE-T gigabit LAN(Intel i211), 1×USB3.0, 5×USB2.0, 4×RS232, 2×RS485, 1×LPC (optional), 8×GPIO. A whole heatsink will be attached to the bottom of the board for better cooling performance.

• Intel Bay Trail BGA processor


• Dual channel DDR3L up to 4GB


• Display interfaces: VGA, HDMI, eDP/LVDS


• 10/100/1000Mbit ethernet card


• SATA2.0, mSATA, eMMC (optional)


• 9~24V DC input (9~36V, optional)
