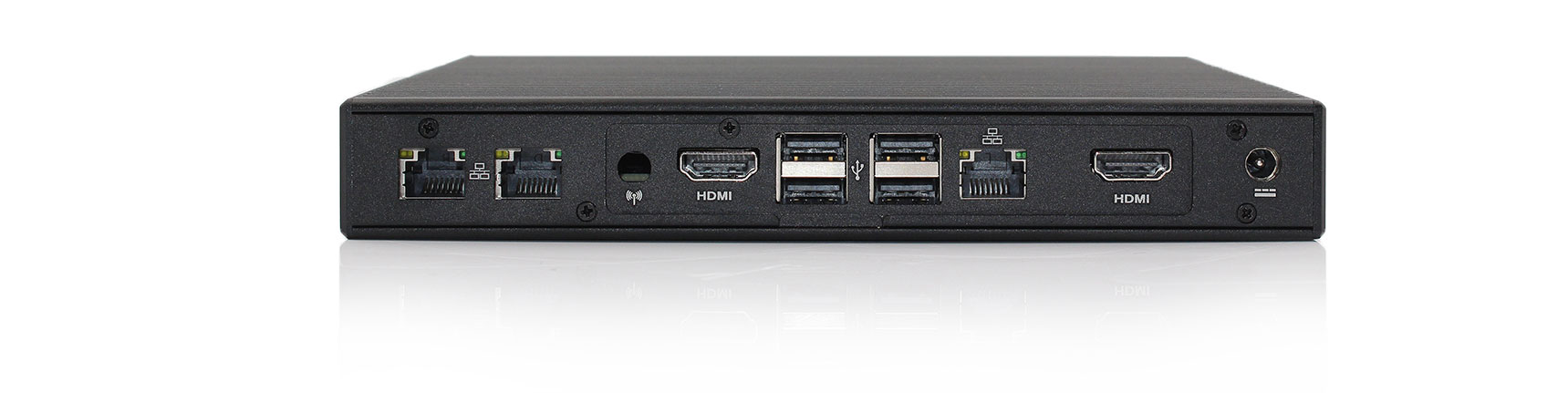

Supreme Interfaces
Plenty of ports for full connectivity.
Lightweight, small form design
Still, it delivers the best performance.
Advanced features in Mini PC
This Mini PC blends the performance and power of Intel Brasswell platform with rich I/O interfaces to form an especially adaptable computing platform, ideal for workplace and home entertainment.
Gigabit LAN
The Gigabit network interface delivers a high speed LAN Connection with data transfer rate upto 1000Mbps. Gigabit LAN is ideal for seamless internet connection to confidently stream your entertainment and access your favorite apps with no hesitation.
Great Storage
This Mini PC allows for all the expandability you might need. There are 1×mSATA, 1×SATA, 1×eMMC (optional )which give you plenty of options for high-speed, high capacity storage drives.
产品描述

The VBR-30 is a fanless small form factor PC based on Intel low power Brasswell Platform with Celeron N3160 onboard. It features 4K high definition and dual independent display via 2 x HDMI interfaces. It also supports up to 8GB of DDR3L SO-DIMM of up to 1066/1333/1600 MHz in two sockets to add higher bandwidth and lower latencies for processes. That being said, the VBR-30 is also loaded with eMMC (8GB, 16GB, 32GB and 64GB options) for storage expansion. It has 4 USB2.0, 2 USB3.0, 2 COM, 1 DC_IN, 1 Audio in and 1 Line out, which meets most requirements in the market. There are two LAN versions for this computer with 3 LAN or 1 LAN options. These combined features make this mini computer an ideal for a range of applications like digital signage, industrial automation, network security and so on.

功能
    • Developed around low power Brasswell Platform Celeron N3160

    • 2 x SO-DIMM slots for memory up to 8GB

    • HD 1080P playback and dual independent displays via 2 HDMI ports, and 4K high definition via HDMI port

    • Rich I/O ports: 2 x USB3.0, 4 x USB2.0, 3 x LAN, 2 x COM

    • Wide expansions: 1 x SATA, 1 x SIM slot, 1 x mSATA, 1 x mini-PCIe, 1 x eMMC (option)

    • Supports PXE, Wake On LAN, Auto Power On Function

    • Fanless design
