Supreme Interfaces
Plenty of ports for full connectivity.
Lightweight, small form design
Still, it delivers the best performance.
Advanced features in Mini PC
This Mini PC blends the performance and power of Intel Bay Trail platform with rich I/O interfaces to form an especially adaptable computing platform, ideal for workplace and home entertainment.
Dual Display
Enhanced productivity effiency by extended desktop or enjoy work and play with one ultra small form factor unit.

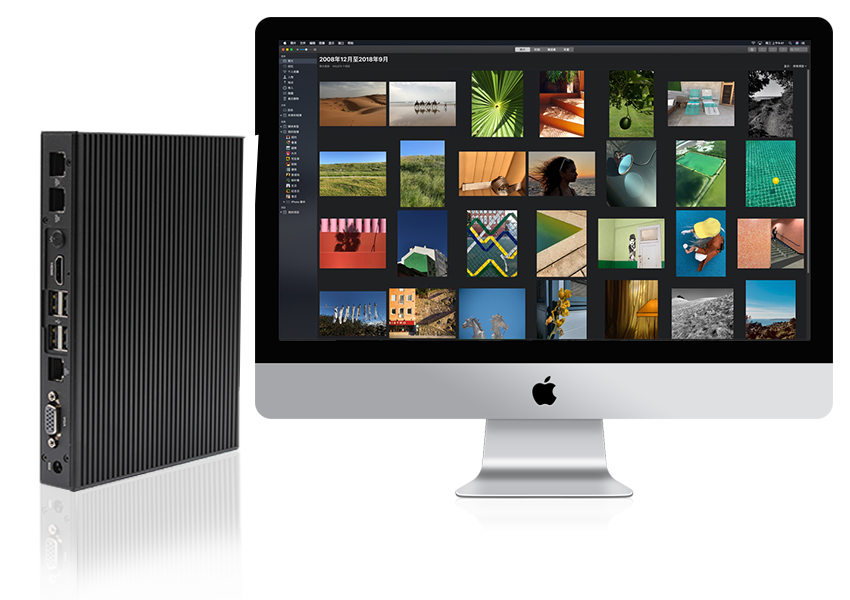

Mini PC
Compact, portable and “east to setup” Mini PC designed to provide maximum performance at a minimum foot print.
产品描述

The VBYT-30 is a small form factor fanless embedded system. Built with the Intel® Bay Trail platform, it supports Intel® Celeron™ J1900, J1800, N2940 and ATOM-E E3845. This system carries a DDR3L SO DIMM slot with a total maximum capacity of 8GB to add higher bandwidth and lower latencies for processes.That being said, this computer also features 1×HDMI and 1×VGA(HDMI2, optional), supporting dual independent playback.


This embedded system has aluminum enclosure, and is designed to be fanless and compact, which makes it an ideal for space-sensitive applications. It has three configurations: 1 version has 1×LAN and 1×VGA and 1×HDMI, and one version 3×LAN and 1×VGA and 1×HDMI, another version has 2×HDMI and 3×LAN. It also has rich interfaces as 5×USB2.0, 1×USB3.0, 2×COM(Either COM can be set as RS232 or RS485), 1×DC_IN, Mic-in and Line -out, catering to all the requirements in the market. This Bay Trail based system is designed for various application as, but not limited to, automation, network security, communication and transportation.

功能
    • Developed around low power Bay Trail Platform Celeron J1900, Celeron J1800, Celeron N2940 and ATOM-E E3845

    • 1xSO-DIMM slot for memory up to 8GB

    • HD 1080P playback and dual independent displays via HDMI and VGA(HDMI2, optional) ports

    • Rich I/O ports: 1 x USB3.0, 5 x USB2.0, 3 x LAN, 2 x COM(Either COM can be set as RS232 or RS485)

    • Wide expansions: 1 xSATA, 1 x Micro SIM slot, 1 x mSATA, 1 x mini-PCIe

    • Supports PXE, Wake On LAN, Auto Power On Function

    • Fanless design

    • Supporting VESA Mounting Standard MIS-D 75, 100
