I/O Interface

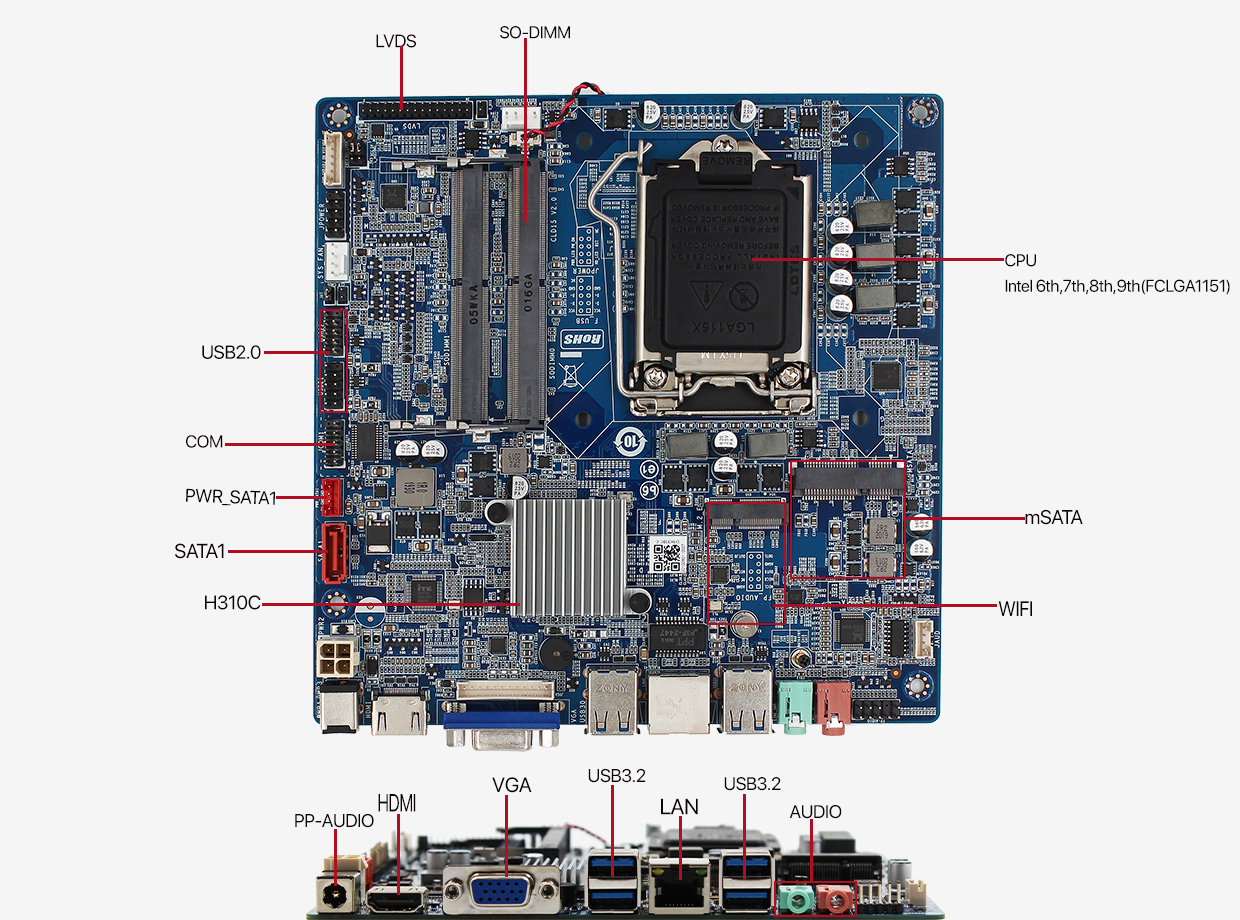

The CLD15 designed to support 4 x USB3.2, 4x USB2.0, included LAN, HDMI, VGA, M.2, SATA3.0, SATA2.0, and mSATA, which gives you a variety of options to select your add-on cards to customized based on your needs.
CLD-15
Mini ITX based on the H310C chipset and Intel 6th, 7th, 8th,and 9th Gen Processors (FCLGA1151)
Smaller, Smoother, Faster and Better
Increase productivity, Decrease labor costs
Comprehensive I/O ports
The The micro ITX motherboard has I/O interfaces
that can meet most of requirements in the market.
产品概述

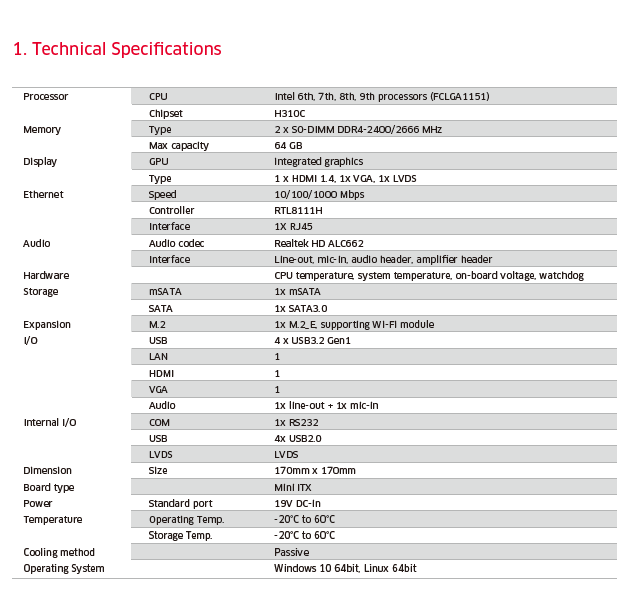

The CLD15 is an embedded motherboard, supporting Intel® latest 6th, 7th, 8th, and 9th Gen. Core™ i3/i5/i7 Celeron/Pentium processor. Loaded with an H310C chipset, this board features 1 x HDMI 1.4, 1x VGA, 1x LVDS, with an ethernet speed of 10/100/1000 Mbps. It carries 2 x SO-DIMM DDR4-2400/2666 MHz slots up to 64GB to add higher bandwidth and lower latencies for processes.
产品特色
• CPU: Intel 6th, 7th, 8th, and 9th desktop CPU
• Memory: Dual channel SO-DIMM DDR4 (max 64 GB)
• Display: 1x HDMI1.4,1x VGA, 1x LVDS
• Ethernet: Support 1x Gigabyte ethernet cards
• Expansion: mSATA, SATA3.0, M.2
• Power: 19V DC input
下载文件
