Power at its Core
The Intel Broadwell-U processors provide you with higher and fast performance. The cost-effective CPU allows you to gain the best computing experience and work with greater productivity and speed while it cost little.
Wide Applications
Industrial controllinig
Medical
Smart school
Digital signage
Comprehensive I/O ports
This mini-ITX embedded motherboard also has rich I/O interfaces, which meets most of requirements in the market.
产品概述

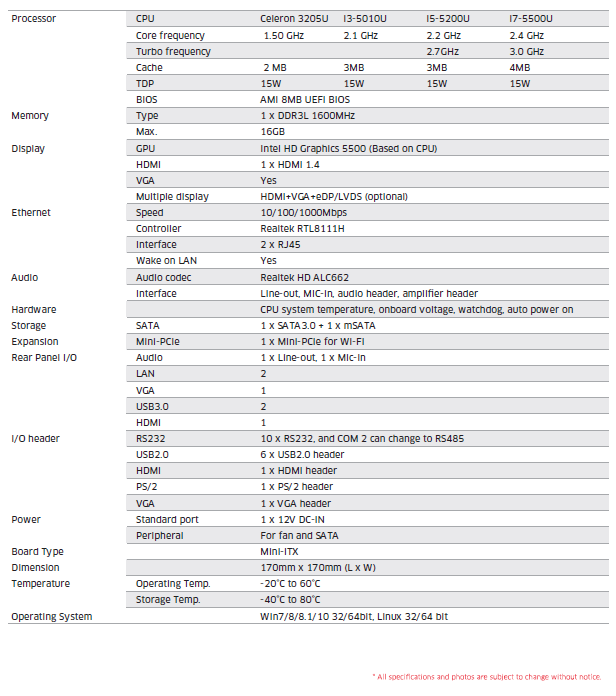

The mITX-BW10 is a thin mini-ITX motherboard, supporting Intel® Broadwell processors including i7-5500U, i5-5200U, i3-5010U, and Celeron 3205U. Built from Broadwell platform, it is also equipped with Intel® HD Graphics 5500 for better graphic processing. This board supports 4K playback via HDMI ports when Core CPU is onboard. It carries one DDR3L 1600MHz SO-DIMM slot with a total maximum capacity of 16GB to add higher bandwidth and lower latencies for processes.
The mITX-BW10 has 10xCOM, 2x USB3.0, 1x mSATA, 1x SATA3.0, 1x mini PCIe, 1x Mic-in and 1x Line-out, which meets most requirements for conguration in the market. It also has 2 Gigabit LAN ports for networking application. This motherboard also supports Auto Power On for more secure network.

产品特色
    • Intel Broadwell-U Core and Celeron processors, low power consumption

    • DDR3L up to 16GB memory

    • Intel HD Graphics 5500, HDMI, VGA, eDP/LVDS optional

    • Support 10/100/1000M bit ethernet card

    • SATA3.0, mSATA, mini-PCIe, 10xCOM

    • 12V DC input
