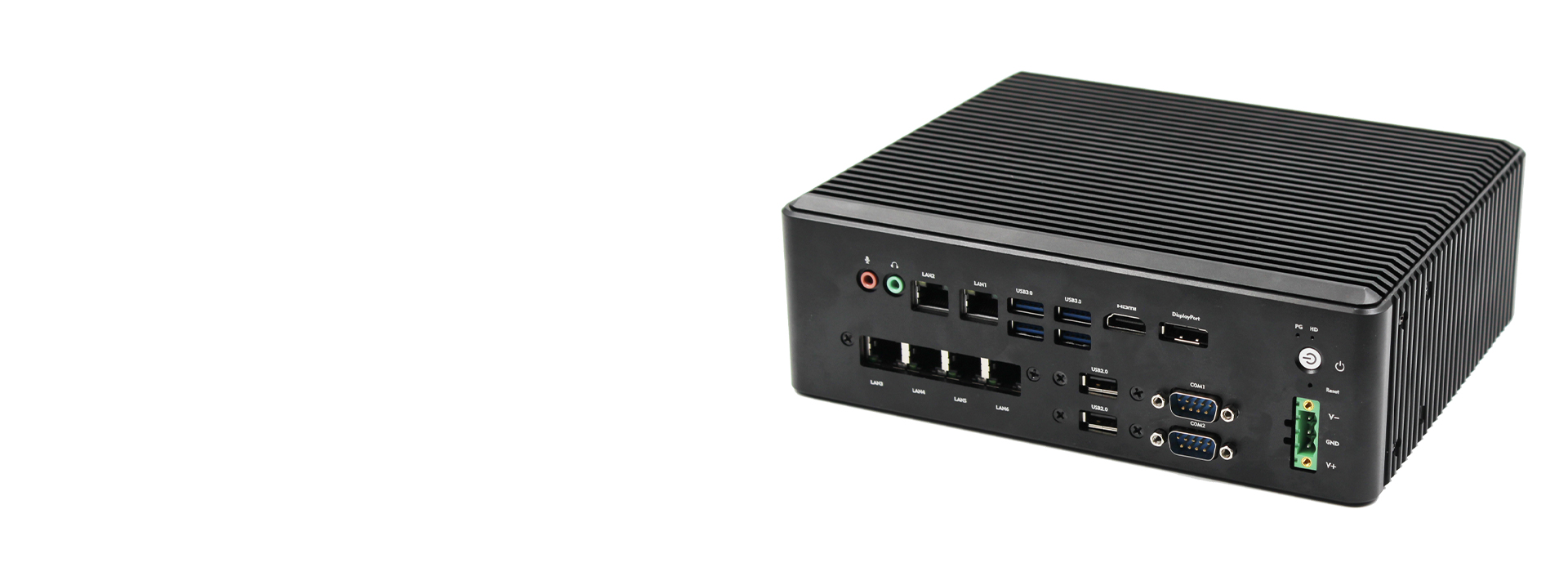

Supreme Embedded Box PC
Based on the Intel Kaby Lake U Processors

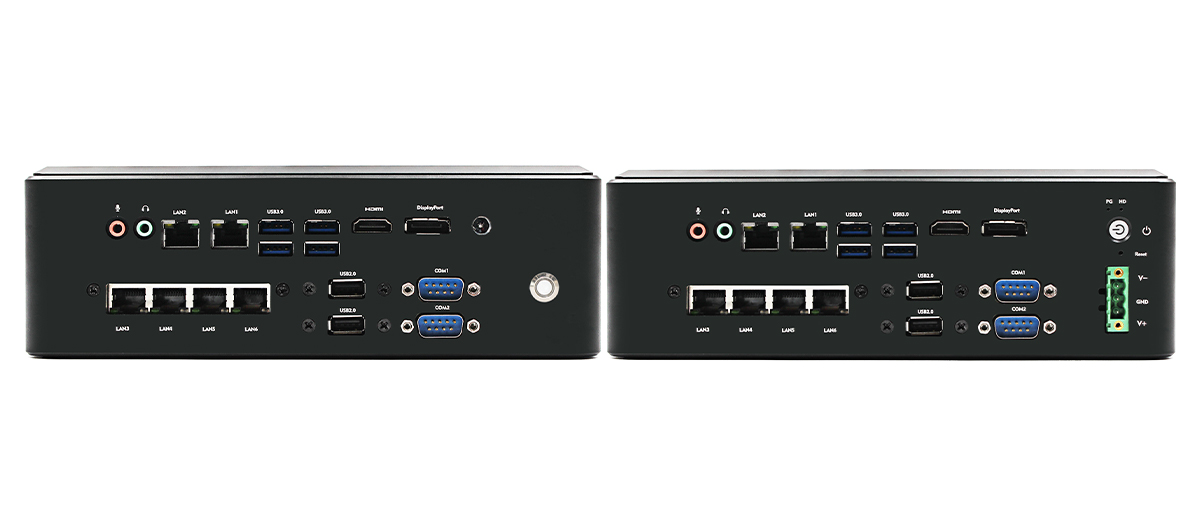

With two kinds of power interfaces (DC or Phoenix)
Enjoy Greater I/O Flexibility
Optimized mechanical design and flexible I/O interface options, assuring maximized flexibility for designing efficiency
I/O INTERFACES
6xLAN Ports
The LAN ports can transmit data at a speed of upto 1GBit. Another option 2xLAN + 4xPOE is also available.
6xUSB Ports
It provides with 4x USB3.0 and 2x USB2.0, catering to most requirements in the market.
产品描述

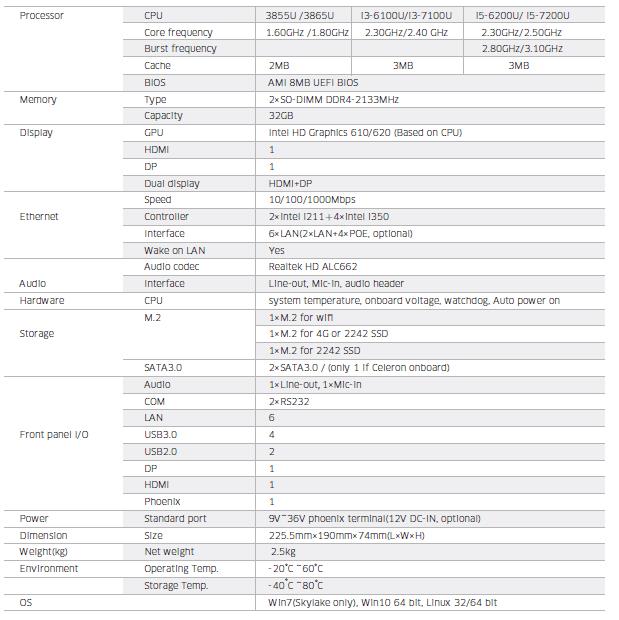

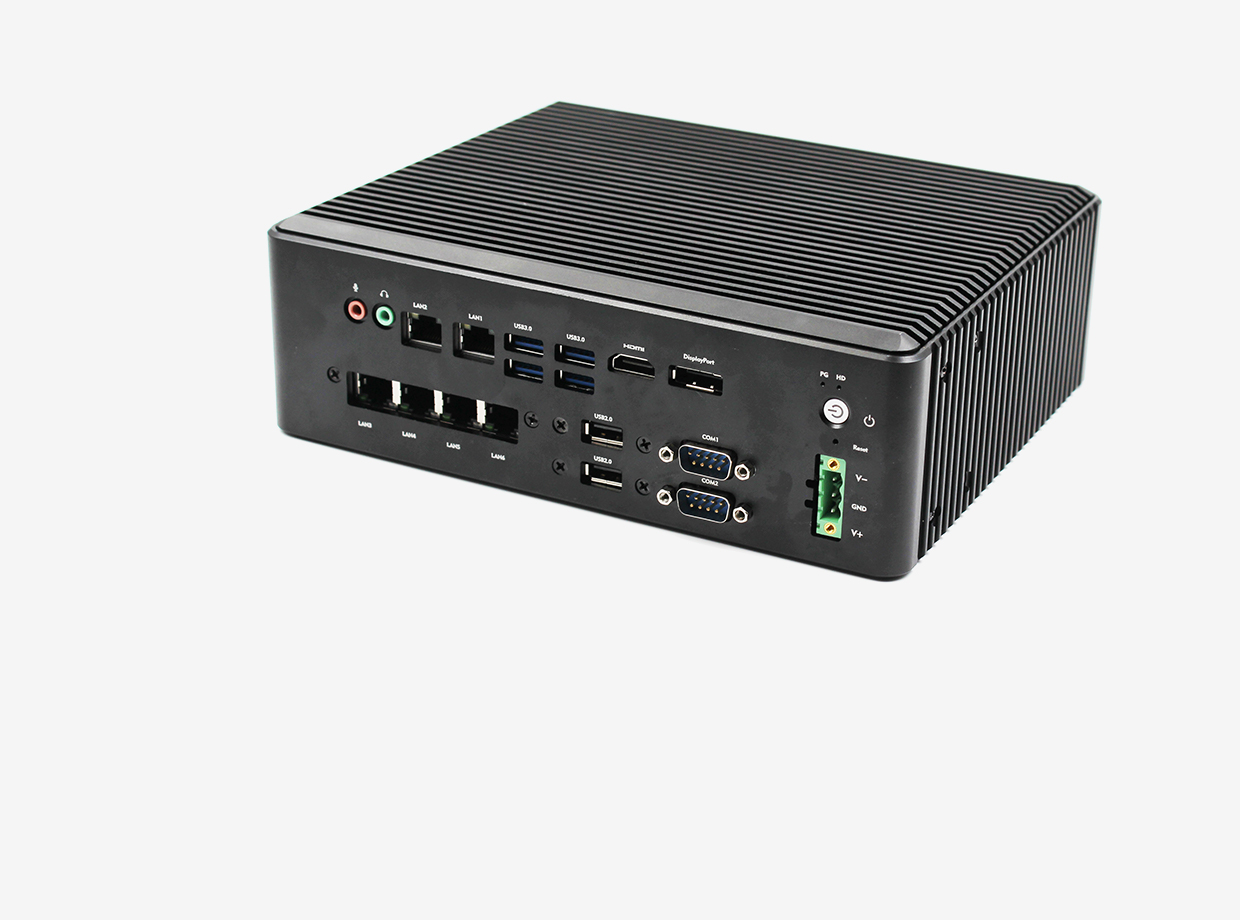

The AXKL10-6L is a small form factor embedded system. Built with the Skylake and Kaby Lake-U platform, it supports 6th and 7th Generation Core™ i3/i5/i7 and Celeron processor, Celeron® 3855U and 3865U, i3-6100U, i3-7100U, i5-6200U, i5-7200U. This system carries two DDR4 SO-DIMM slots with a total maximum of 32GB to add higher bandwidth and lower latencies for processes. That being said, this computer features M.2 and SATA3.0, which makes it a good choice for data transportation application.

This system also features dual display via x Display Port1.2 and 1 x HDMI1.4. It has 6 x 10M/100M/1000M BASE-T gigabit LAN (2 x LAN and 4 x POE, optional), 4 x USB3.0, 2 x USB2.0, 2 x RS232,catering to most requirements in the market. This system can deliver cutting-edge performance with very low power consumption. Another special feature of this board is its 6×LAN interfaces, which makes it ideal for applications like network security, video surveillance, firewall and so on.

功能
    • Intel Skylake-U/Kabylake-U, Celeron BGA processor

    • Dual channel DDR4 memory up to 32GB

    • Dual display: HDMI, DP

    • 6×10/100/1000Mbit LAN(2×LAN+4×POE, optional)

    • SATA3.0, M.2

    • Fanless design and low power consumption

    • 9-36V Phoenix input(12V DC input, optional)
